정비장비

리프트

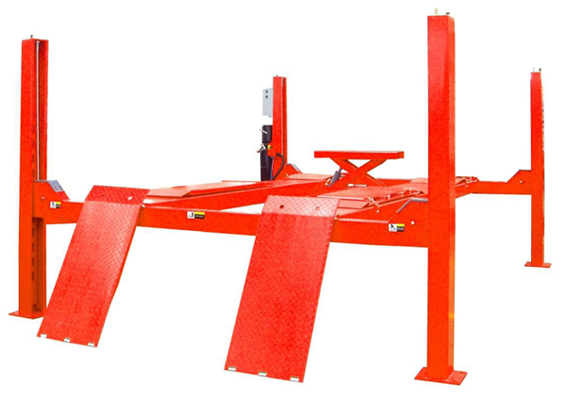

TLT455W

Wheel alignment 4-post lift

Features


  • Two-layer concealed plate structure, excellent synchronizing performance with the horizontal precision of 1 mm
  •
  • Front wheel turn plate's position is adjustable and rear wheel sliding plate is extended for various vehicle type
  •
  • Deployed with rolling jack with small scissor hydraulic lifting and lowering. can be moved back and forth and easy to adjustment tire
  •
  • Positioning level's accuracy is adjustable. distance between platforms is adjustable, wheel base in certain scope is adjustable
  •
  • Driven by hydraulic cylinder, full-scope mechanical safety locking by locking latch ,manual lowering
  •
  • Cable rupture safety system ,effectively protects vehicle from overturn
  •
  • Four connected steel cables force synchronized movement of the lift, effectively prevent vehicles from sloping
  •
  • Cylinder travel limit device effectively protects cylinder and extends its lifespan
  •
  • Electric controlled lifting and lowering type is opflonal
  •
  • The installation position of turntable and side slip plate can be moved backwards and forwards
  •
  • Applicable for vehicles with different wheel base
  •
  • CE certificated

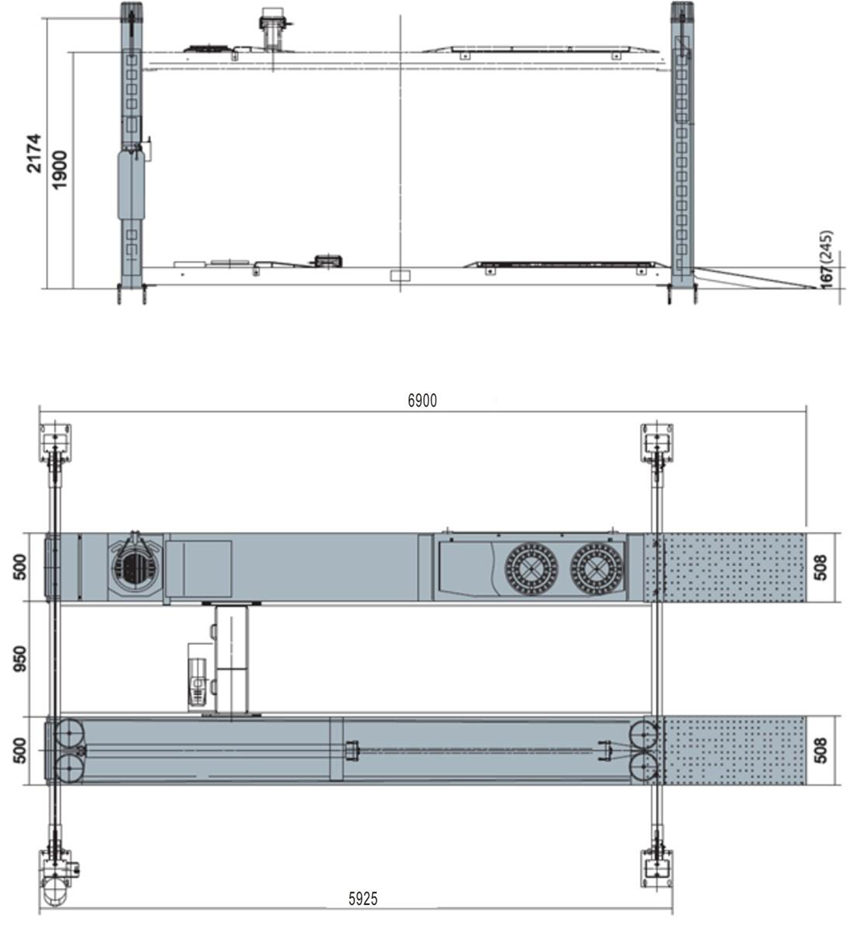

Overall size
