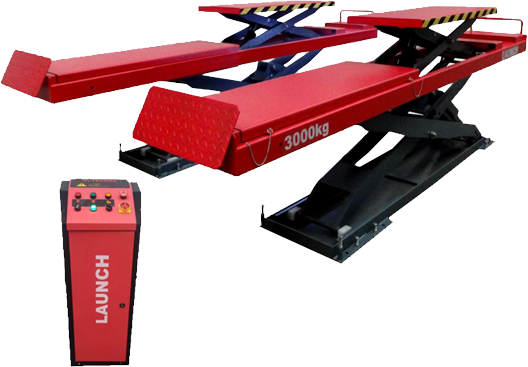

TLT830WA

Big scissor lift with
secondarylift

Features


  • ln-ground and on-ground installation are optional.
  •
  • Double scissors lift, with the front wheel turntable positions, rear wheel side sliding plate and scissor type secondary lifting,suitable for the four-wheel alignment
  •
  • Hydraulic interlocking and Anti-explosion safety device makes it stable and reliable operation
  •
  • Bilateral hydraulic synchronizing system ensures high synchronization performance
  •
  • Widened secondary Iift's runway design ,more applicable for vehicles with different wheel track
  •
  • Travel limit safety device ,protects machine from being damaged.
  •
  • Oil hose anti-explosion device
  •
  • CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to 400mm high from ground
  •
  • All moving points adopt automatic lubricating oil-free bearing for ensunnglonglfiespan
  • CE certificated

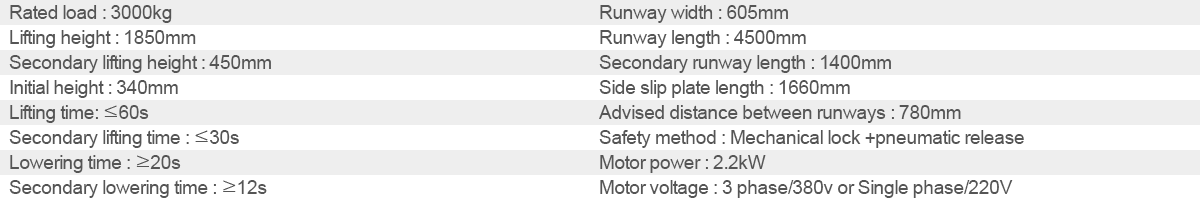

Technical parameters





Environmental Requirement


  • Working temperature : -5°C~40°C
  • Transport/storage temperature : -5°C ~40°C
  • Relative humidity : Temperature +30°C, relative humidity 80%
  • Height above sea Ievel : No more than 2000m


Overall size
